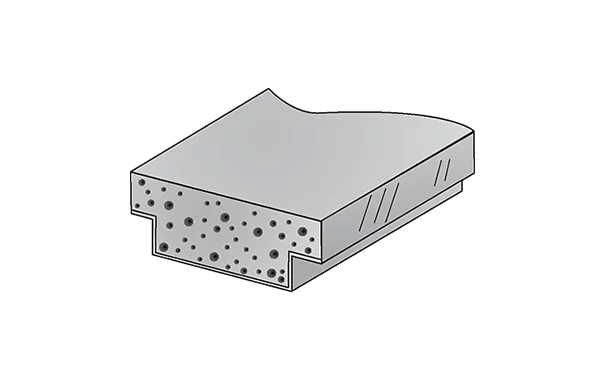

Super Spacer® T-Spacer™
Quanex’s Super Spacer® T-Spacer™ is engineered for the most demanding commercial door unit glazing projects, including silicone structural glazing (SSG). It features an internal acrylic adhesive that allows for immediate handling, making it perfect for high-speed automated manufacturing.
This spacer uses a triple-seal design and online PIB extrusion during the insulating glass (IG) manufacturing process. It’s built to withstand the challenges commercial IG spacers face daily, providing a durable solution for even the most innovative architectural designs.
Used in commercial buildings worldwide, T-Spacer has enhanced thermal performance while still allowing for the benefits of large-format glass. For both manufacturers and architects, T-Spacer is a reliable solution for every commercial IG need.
Technical data
- Thermoset, silicone spacer with integral desiccant
- Low thermal conductivity
- Unique triple-seal design
- Inner acrylic adhesive seal for immediate unit handling
- Customer-applied polyisobutylene primary seal
- Customer-applied structural secondary seal
- Excellent durability for sustainable performance
- Meets the criteria for:
- North America ASTM E2188/ E2189/ E2190
- European EN 1279
- Canadian CGSB 12.9
- French Standard CSTB for CEKAL
- LEED® Contribution
- Passive House phA+ certificate for Arctic climate
- ASTM E330 (120* psf positive, 155* psf negative)
Benefits
- Improved occupancy comfort
- Optimized energy savings
- Substantially reduced perimeter condensation
- Pleasing aesthetic appearance
- Excellent UV resistance, color stability
- Structural strength against wind and snow loads
- Enhanced sound dampening
- Fast spacer application for simplified production with reduced labor
- Robotic application for straight/accurate sightlines
