Residential Products
DOOR & WINDOW JAMBS TAILORED to YOUR PRODUCT LINE
Quanex Custom Components provides jambs for any window or door with custom programs to fit your product needs, all from one source.
Expansive product offering and capabilities enable a seamless jamb, regardless of material or finish.
- Unfinished Solid Hardwood/Softwood
- Primed Solid or Fingerjointed Wood
- Profile Wrapped (Veneer, Vinyl, Paper)
Unparalleled quality and service allow you to focus on customer satisfaction and avoid supply chain issues.
Improve productivity metrics and generate additional production capacity.
Programs tailored to meet specific production needs.
- Long lengths available—up to 24’ with certain fingerjointed product
- Prepared for paint or stain
- Stock profiles or custom profile matching
Solid wood species available
- Alder
- Ash
- Cherry
- Fir, Douglas
- Hemlock
- Mahogany, African
- Maple, Hard
- Maple, Soft
- Oak, Red
- Oak, White
- Pine, Multiple
- Poplar
- Walnut
- Primed Fingerjoint
Profile Wrapped Offerings
Substrate
- Fingerjointed Wood
- Particleboard (MR available)
- Metal
- Solid wood

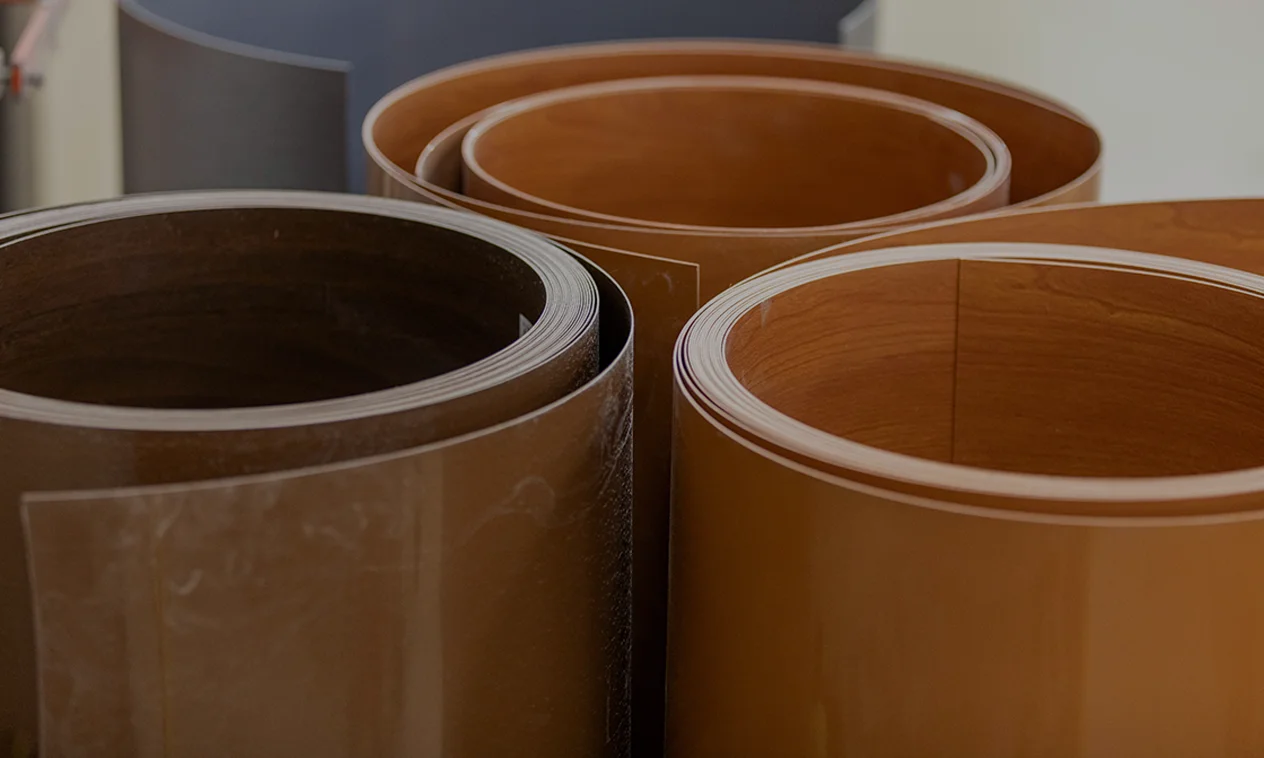

Wrap Materials
- Wood Veneer
- Recon Veneer
- Paper
- Vinyl
Jamb Specifications
Quanex manufactures door jambs and window jambs in various profiles to meet any project need. Numerous surface wraps are available to provide solutions specific to project aesthetics, protection from the elements, and design.

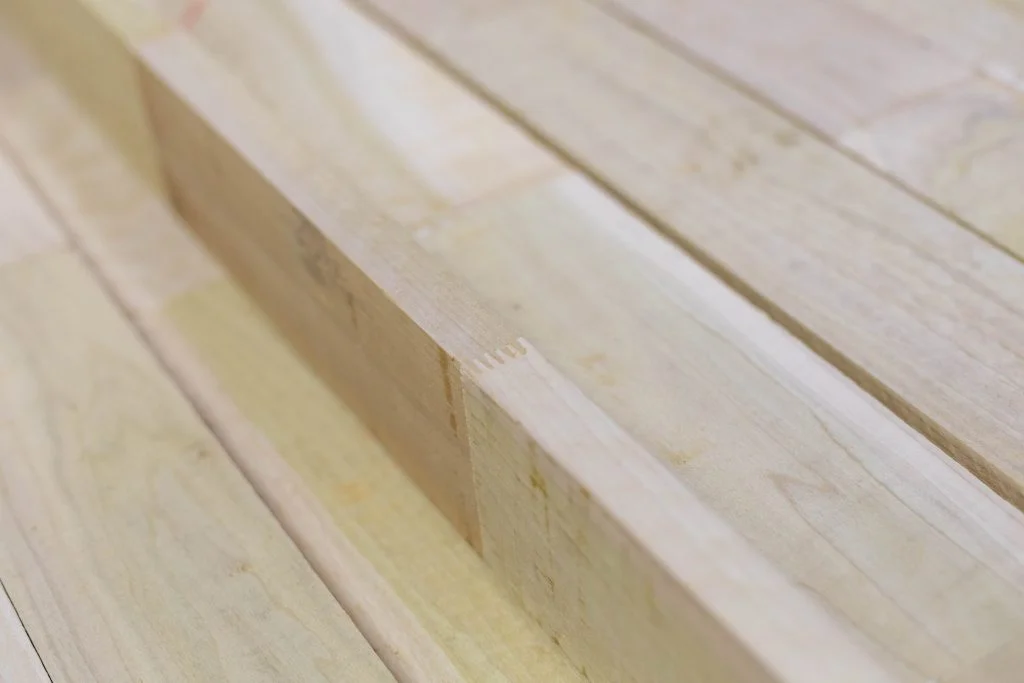

Fingerjointed Jambs
GLUE: Water-resistant, crosslinked polyvinyl acetate emulsion adhesive. Meets WDMA Type 1 and 2 water resistance. SDS available upon request.
Primed Jambs
PRIMER: Water-based primer, VOC: <0.4 lb/gal
Profile Wrapped Jambs
GLUE: Adhesive is PUR (Polyurethane reactive). Type-1, moisture resistant adhesives available as determined by the application
JAMB THICKNESS:Standard thicknesses of 5/8” and 11/16”. Other thicknesses and widths available as determined by the application.
COMPLIANCE:
- EPA TSCA Title VI, HUD 24 CFR 3280, CCR 93120 CARB ATCM Phase 2, CAN/CSA-0160-16 (Formaldehyde Emissions)
- ECC CPA 4-11 (Sustainability); ANSI A208.1 2016 (Physical Properties
- Flame spread rating is class C (International Code Council – International Fire Code® and National Fire Protection
- Association 101 Life Safety Code®) as tested to ASTM E84 and CAN/ULC-S102-10.
- MR10 compliance with ANSI A208.1 2016 when tested according to ASTM D1037-12, 24-hour water submersion.
PERFORMANCE:
| Density | 48 lb/ft3 |
| Internal Bond | 130 PSI |
| Screw Hold - Face | 320 Lbs |
| Screw Hold - Edge | 260 Lbs |
| Formaldehyde, Emmissions (TSCA Title VI) | <0.09 ppm |
| Linear Expansion - Maximum | 0.3% |
| Water Absorption - Maximum | 20% |
| Thickness Swell - Maximum | <5% |
| Moisture Content | 7% |
| Sanding | 120 grit |
