FirstStep™ Sill

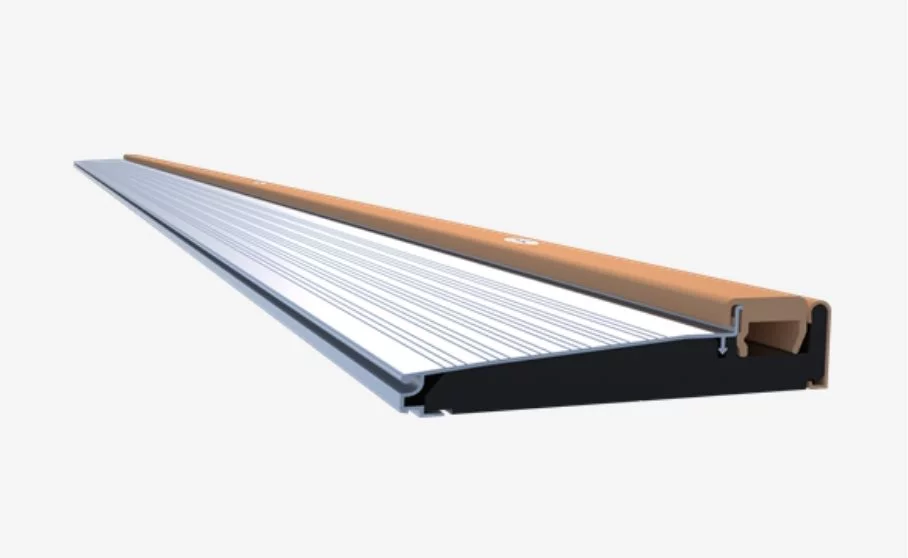

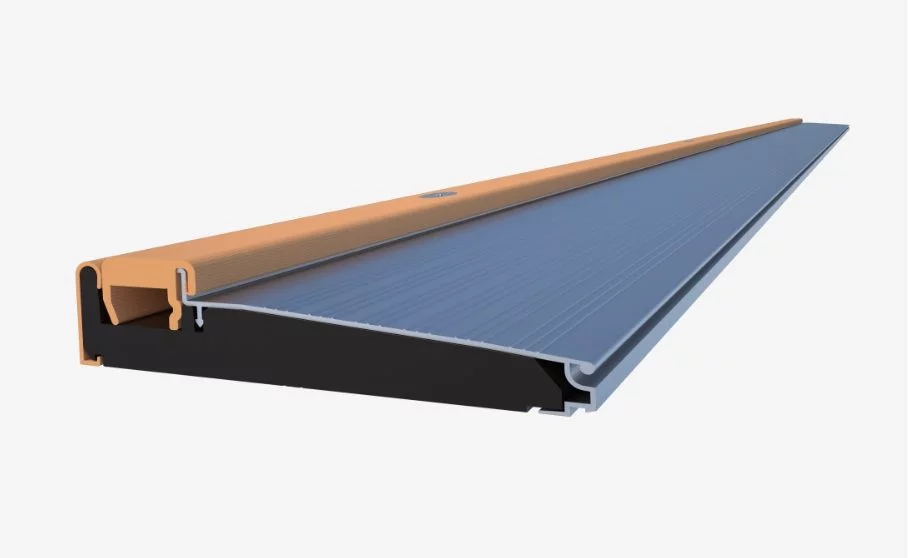

The residential door FirstStep™ Sill is a high-quality composite exterior door threshold product for the general market, delivering ideal performance for entry-level applications and beyond. Meeting the minimum residential building code requirements for water performance of PG15, the FirstStep™ Sill was developed to deliver the perfect balance of quality, utility and value.
Technical data
- The FirstStep™ Sill features exposed screws for easy adjustment and minimized damage to door sweeps
- No screw caps to lose
- Natural woodgrain look to the Adjustable Rail and Nosing
- .055 Aluminum Deck available in Mill or Bronze Anodize
- Industry standard 5 degree dado spec with 1 3/8″ high rail
- This exterior door threshold is available widths 3-1/2”, 4-9/16”, 5-5/8” and 7-5/8”
- Will accept our full line of 5 degree extenders (3/4″ – 4 3/8″)
Benefits
- The FirstStep™ Sill offers a Full Sill Program with Singles, Continuous Sidelite (CSL), French, and Patio configurations
- Quanex’s proven Screw/Clip technology equals reliability
- A competitively priced product for builder-grade and retail applications
- Rail assemblies can be removed and replaced without tools
- Pre-marked measurements help trim sills for installation
Performance
- The FirstStep™ Sill meets the minimum building code requirements for water performance of PG15
- Tile-back option allows sill to sit flush with tile flooring with available integrated gasket
- Can be configured to ADA accessibility requirements
